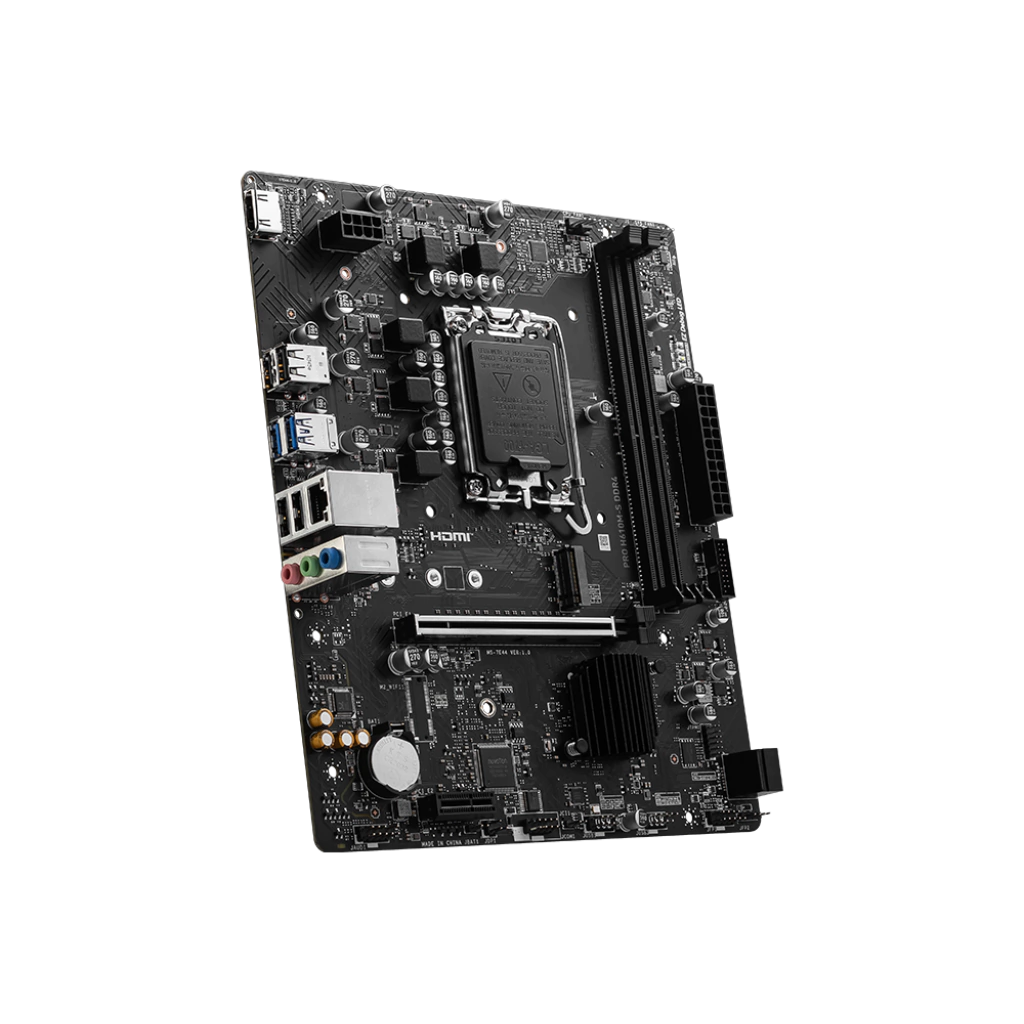

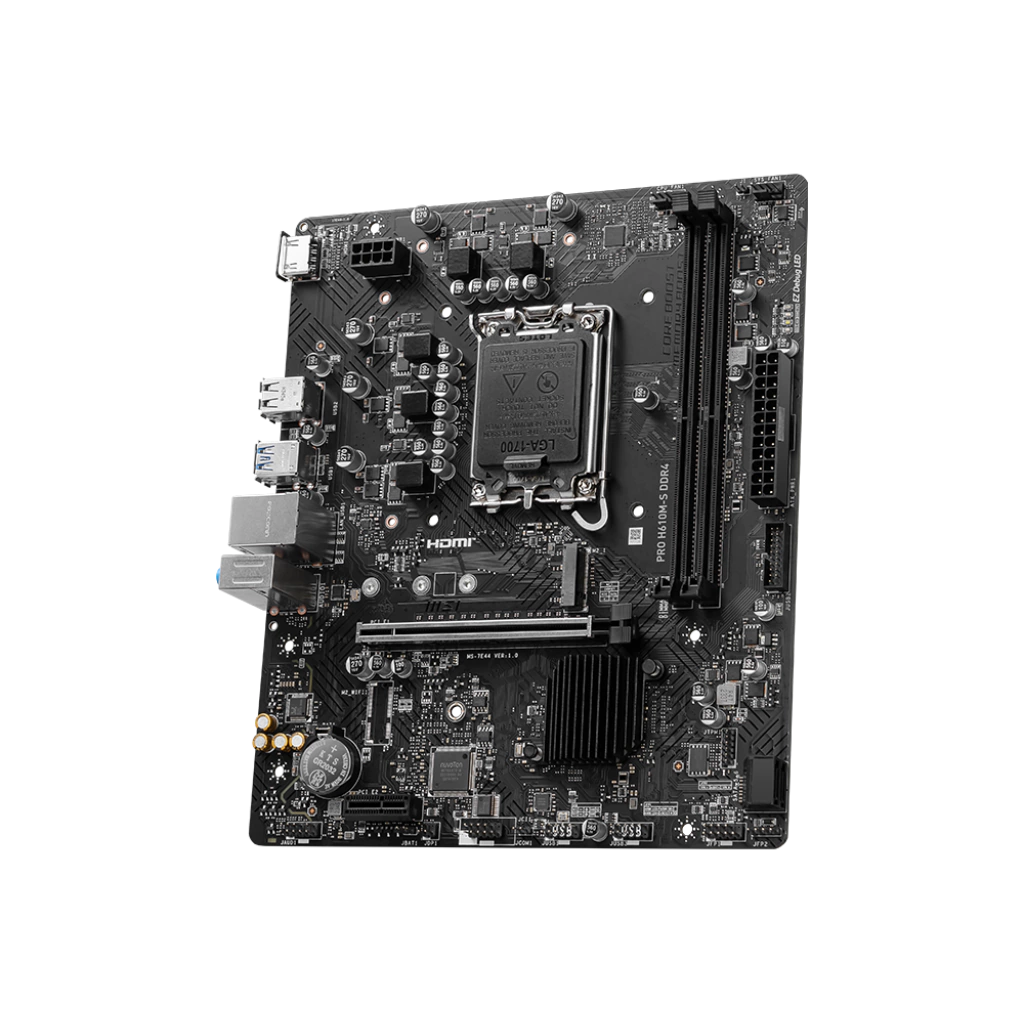

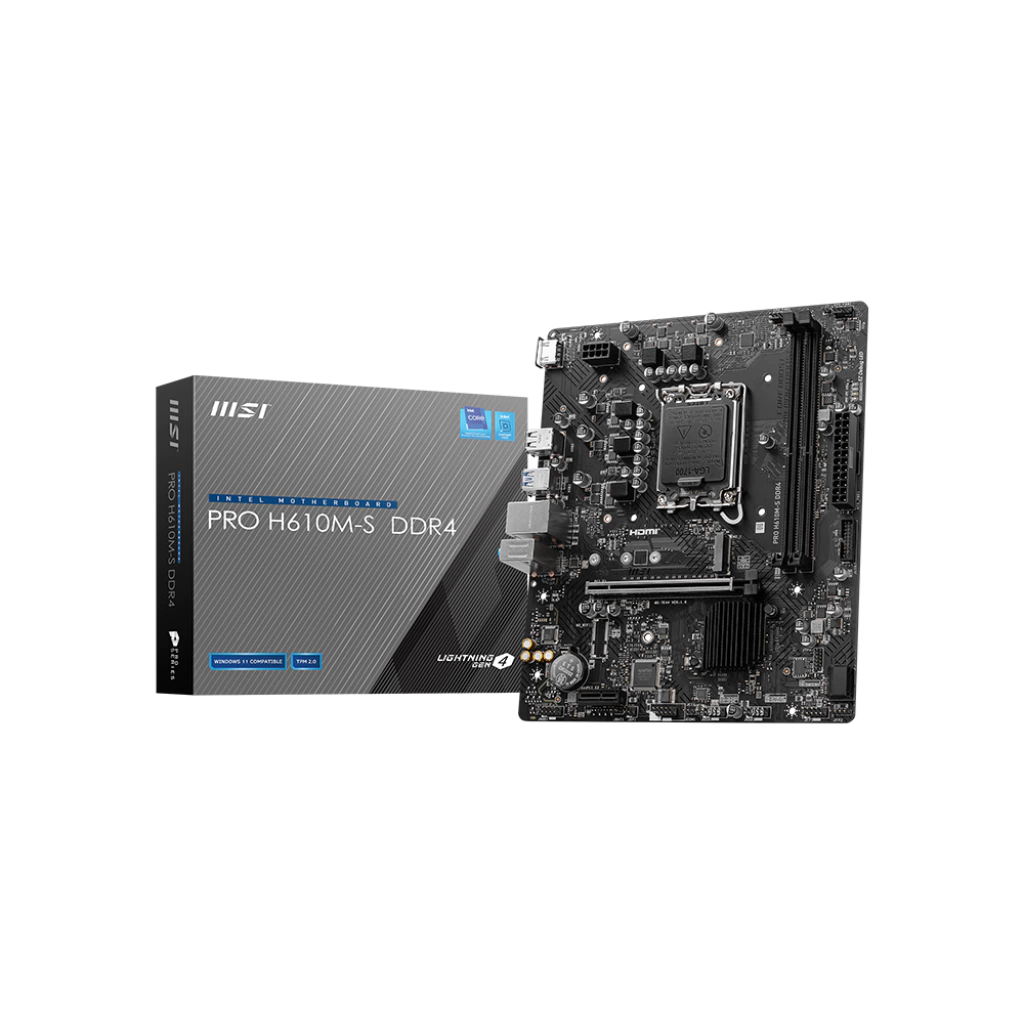

MOTHERBOARD MSI PRO H610M-S 1700 (4711377198257)

Descripción

• Chipset: INTEL H610
• CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Memory

• 2x DDR4, Maximum Memory Capacity 64GB
• Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

Onboard Graphics

• 1x HDMI™
• Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

• 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Storage

• 1x M.2
• M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
• 2x SATA 6G

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)

LAN

• Realtek® RTL8111H Gigabit LAN

Internal IO

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports

LED FEATURE

• 4x EZ Debug LED

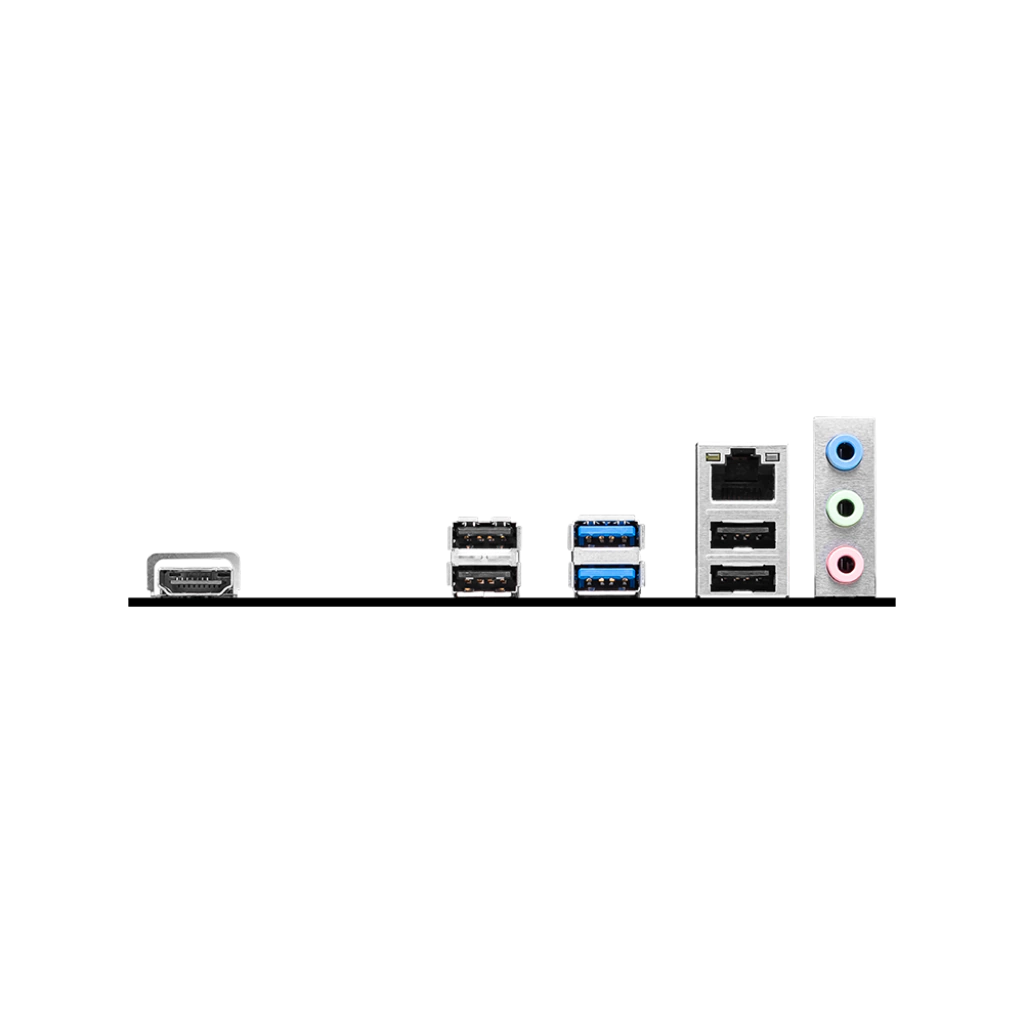

BACK PANEL PORTS

• HDMI™
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 2.0
• LAN port
• Audio Connectors
• USB 2.0

OPERATING SYSTEM

• Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

• MATX 200mmx236.16mm

EAN: 4711377198257
